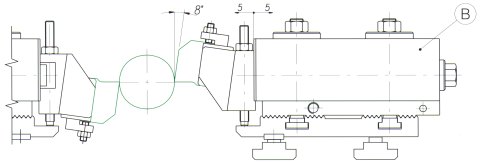

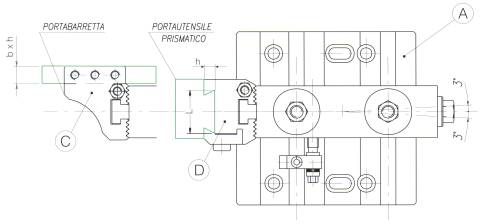

MODULAR PRESETTABLE UNIT, BAR AND PRISMATIC TYPE WITH REGULATION
Pos. 1°-2°-3°-4°-5°
| MACHINE | MODEL | BODY (A) | BODY (B) |
TOOLHOLDER BODY (C) |
PRISMATIC BODY (D) |
b x h | L x h |
|
WICKMAN |
5/8" |
858010 |
8591010 |
8570120 |
854020 |
12
x 12 |
20
x 7 |
|
WICKMAN |
1" |
858220 |
8592020 |
8570160 |
854028 |
16
x 16 |
28
x 9 |
|
WICKMAN |
1"3/4-3/8 |
858230 |
8595020 |
8570200 |
854028 |
20
x 20 |
28
x 9 |
|
WICKMAN |
2"1/4 |
858720 |
8595020 |
8570250 |
854040 |
25
x 25 |
40
x 11 |
|
GILDEMEISTER |
AS32
– GM32 |
858225 |
8592020 |
8570160 |
854028 |
16
x 16 |
28
x 9 |
|
GILDEMEISTER |
AS48
– AS40 |
858238 |
8595020 |
8570200 |
854028 |
20
x 20 |
28
x 9 |
|
GILDEMEISTER |
AS67 |
858750 |
8595050 |
8570250 |
854040 |
25
x 25 |
40
x 11 |
|
MORI SAY |
6/25 – 6/32 |
858224 |
8592020 |
8570160 |
854028 |
16 x 16 |
28 x 9 |
|
SCHÜTTE |
SE16 – SF20 |
858215 |
8591015 |
8570160 |
854020 |
16
x 16 |
20
x 7 |
|
SCHÜTTE |
SE25
– SD32 |
858218 |
8595020 |
8570200 |
854028 |
20
x 20 |
28
x 9 |
|
SCHÜTTE |
SD50
– SD63 |
858755 |
8595050 |
8570250 |
854040 |
25 x 25 |
40 x 11 |
