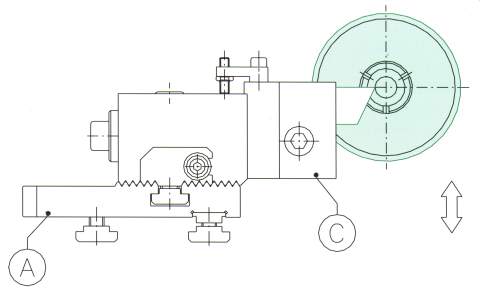

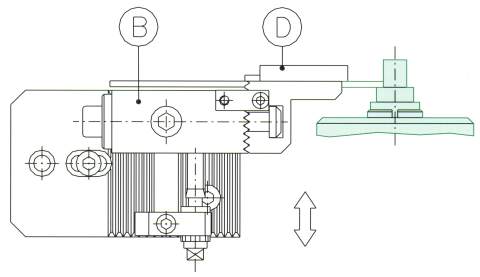

MODULAR PRESETTABLE UNIT WITH BLADE AND BAR
(72 A) Pos. 6°
| MACHINE | MODEL | PLATE (A) |
TURRET (B) |
BLADEHOLDER (C) |
BRACKET (D) | BLADE-EMPRITE |
|
WICKMAN |
5/8" |
721010 |
721012 |
721014 |
721016 |
PM1
– 12x1,6 |
|
WICKMAN |
1" |
722010 |
722012 |
722014 |
722016 |
PM3N
– 17x2,5 |
|
WICKMAN |
1"3/4-3/8 |
723010 |
723012 |
722014 |
722016 |
PM3N
– 17x2,5 |
|
WICKMAN |
2"1/4 |
724010 |
724012 |
724014 |
724020 |
PM5X
– 22x3,2 |
|
SCHÜTTE |
SE16 – SF20 |
722110 |
722012 |
722014 |
72016 |
PM3N – 17x2,5 |
|
SCHÜTTE |
SE25
– SD32 |
722210 |
723012 |
722014 |
722016 |
PM3N
– 17x2,5 |
|
SCHÜTTE |
SD50-63 |
724110 |
724012 |
724014 |
724020 |
PM5X
– 22x3,2 |
|
GILDEMEISTER |
AS32
– GM32 |
723110 |
722012 |
722014 |
722016 |
PM3N
– 17x2,5 |
|
GILDEMEISTER |
AS48
– AS40 |
723210 |
723012 |
722014 |
722016 |
PM3N
– 17x2,5 |
|
GILDEMEISTER |
AS67 |
724210 |
724012 |
724014 |
724020 |
PM5X
– 22x3,2 |
|
MORI
SAY |
6/25
– 6/32 |
722410 |
722012 |
722014 |
722016 |
PM3N
– 17x2,5 |
