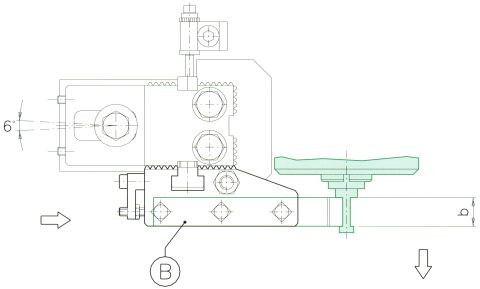

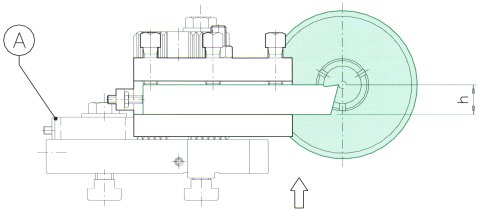

MODULAR PRESETTABLE UNIT, BAR AND PRISMATIC TYPE
(57 B)
| MACHINE | MODEL | BODY (A) | BODY (B) | b x h | POSITION |
|
SCHÜTTE |
SE16 – SF20 |
5720010-20 |
572018 |
18
x 18 |
1°-2°-3°-4°-5° |
|
WICKMAN |
1" |
5720010-21 |
572018 |
18
x 18 |
1°-2°-3°-4°-5° |
|
GILDEMEISTER |
AS32-GM32 |
5720010-22 |
572018 |
18
x 18 |
1°-2°-3°-4°-5° |
|
MORI
SAY |
6/25
– 6/32 |
5720010-24 |
572018 |
18
x 18 |
1°-2°-3°-4°-5° |
|
SCHÜTTE |
SE25
– SD32 |
5725010-32 |
572020 |
20
x 20 |
1°-2°-3°-4°-5° |
|
WICKMAN |
1"3/4
–3/8 |
5725010-30 |
572020 |
20
x 20 |
1°-2°-3°-4°-5° |
|
GILDEMEISTER |
AS48-AS40 |
5725010-40 |
572020 |
20
x 20 |
1°-2°-3°-4°-5° |
|
SCHÜTTE |
SD50-63 |
5735010-50 |
572025 |
25
x 25 |
1°-2°-3°-4°-5° |
|
WICKMAN |
2"1/4 |
5735010-52 |
572025 |
25
x 25 |
1°-2°-3°-4°-5° |
|
GILDEMEISTER |
AS67 |
5735010-54 |
572025 |
25
x 25 |
1°-2°-3°-4°-5° |
|
WICKMAN |
2"5/8 |
5735010-56 |
572025 |
25
x 25 |
1°-2°-3°-4°-5° |
