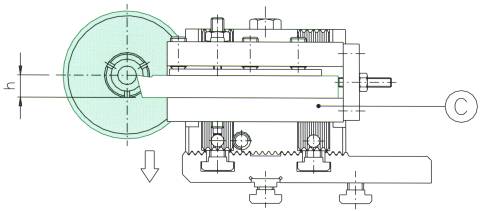

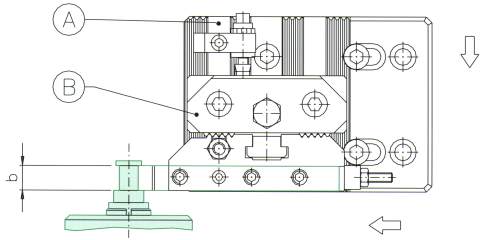

PORTAUTENSILE A
BARRETTA
Con Base Modulare Registrabile
(78 A) Pos. 1°-2°-3°-4°-5°
|
MACCHINA |
MODELLO |
PIASTRA
(A) |
TORRETTA
(B) |
PORTA
UTENSILE (C) |
b
x h |
|
WICKMAN |
5/8" |
781010 |
781020 |
781025 |
16
x 16 |
|
SCHÜTTE |
SE16 –
SF20 |
782010 |
782020 |
782025 |
18 x 18 |
|
WICKMAN |
1" |
782210 |
782020 |
782025 |
18 x 18 |
|
GILDEMEISTER |
AS32
– GM32 |
782310 |
782020 |
782025 |
18 x 18 |
|
MORI
SAY |
6/25
– 6/32 |
782410 |
782020 |
782025 |
18 x 18 |
|
SCHÜTTE |
SE25
– SD32 |
783010 |
783020 |
783025 |
20
x 20 |
|
WICKMAN |
1"3/4-3/8 |
783210 |
783020 |
783025 |
20
x 20 |
|
GILDEMEISTER |
AS48
– AS40 |
783310 |
783020 |
783025 |
20
x 20 |
|
SCHÜTTE |
SD50-63 |
784010 |
784020 |
784025 |
25
x 25 |
|
WICKMAN |
2"1/4 |
784210 |
784020 |
784025 |
25
x 25 |
|
GILDEMEISTER |
AS67 |
784410 |
784020 |
784025 |
25
x 25 |
|
WICKMAN |
2"5/8 |
784610 |
784020 |
784025 |
25 x 25 |
